BlackMagic Design

aLeading the Creative Video Revolution

Blackmagic has grown rapidly to become one of the world's leading innovators and manufacturers of creative video technology. And that's because our philosophy is refreshing and simple — to help true creativity blossom.

About Blackmagic Design

Blackmagic Design's founders have had a long history in post-production editing and engineering. With extensive experiences in high-end telecine, film and post, harnessed with a real passion for perfection, Blackmagic set out to change the industry forever.

A company dedicated to quality and stability and focusing on where it's needed most; Blackmagic has created some of the most talked about products in the industry. World famous for their unbeatable codecs, Blackmagic envisioned truly affordable high-end quality editing workstations built upon Blackmagic software and hardware.

In November 2002, Blackmagic launched the DeckLink capture card and in doing so single handedly made working in true 10 bit uncompressed video on a Macintosh OS X™ system an affordable reality. The DeckLink card has become a market-leading product due to Blackmagic Design's philosophy of delivering “what ever it takes to give creative editors and designers the very best quality tools”.

"Blackmagic Design is dedicated to allowing the highest quality video to be affordable to everyone, so the post production and television industry can become a truly creative industry." Grant Petty—CEO

DeckLink SDI

Now it’s easy to connect and to capture and playback SDI, HDMI, analog component, S-Video and composite to your Mac, Windows or Linux computer! DeckLink easily handles SD, HD and 2K video formats and works with popular software such as Final Cut Pro, Premiere Pro, After Effects, Photoshop, Fusion, ProTools and many more!

a

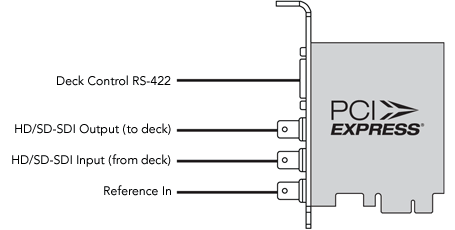

DeckLink SDI is perfect when you need an SDI only solution but demand high quality 10 bit 4:2:2 based SDI capture and playback. DeckLink SDI plugs into Windows, Mac OS X and Linux computers and features HD/SD-SDI capture and playback combined with tri-sync/black burst reference input and RS-422 deck control. Media Express software is included so you get capture and playback for AVI, QuickTime and DPX on Mac, Windows and Linux. DeckLink SDI is a perfect choice when all your connections are SDI and you don’t need analog connections.

Connections:

a

DeckLink DUO

There are 4 great models of DeckLink, from low cost HD/SD-SDI, right up to dual link 3 Gb/s 2K/HD/SD-SDI models with loads of analog, HDMI and 3D features. For a complete creative workstation solution, all DeckLink cards includes Media Express software for capture and playback of AVI, Quicktime and DPX files on Mac, Windows and Linux.

a

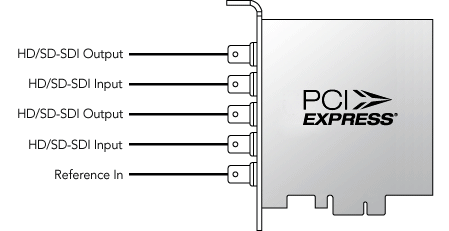

DeckLink Duo is perfect for developers who need two completely independent capture and playback streams in and out of a computer, as both capture and playback channels are completely independent. There are two SDI inputs, and two SDI outputs plus a common tri-sync/black burst reference. DeckLink Duo appears as two independent SDI cards to the computer, but only uses a single PCI Express slot. DeckLink Duo is perfect for servers where there are multiple streams or simultaneous capture and playback per system. DeckLink Duo is compatible with Windows™, Mac OS X™ and Linux™.

Connections:

a

DeckLink Studio

If you work with a massive range of analog video and audio gear and need to move seamlessly between SD and HD, then DeckLink Studio is perfect! DeckLink Studio includes SD/HD-SDI, HDMI, SD/HD component, composite, s-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. No other DeckLink card connects to more types of analog video, and DeckLink Studio is perfect when you have a wide range of older analog as well as the latest HD-SDI decks!

a

DeckLink HD Extreme 3D

a The new DeckLink HD Extreme 3D features single and dual channel SDI capture and playback for both regular 2D and new 3D stereoscopic workflows! Includes dual link 3 Gb/s SDI, HDMI and analog component/composite/s-video connections. Work in SD, HD, 3 Gb/s HD-SDI and 2K in 4:2:2 or 4:4:4. Also includes AES and analog balanced audio, 16 channel SDI audio, genlock and deck control. SDI, HDMI and analog component works in all video formats up to 1080p60. Includes broadcast quality up, down and cross conversion, plus built in SD/HD internal keyer.

Intensity Pro

a Intensity Pro is the world’s first HDMI and analog component, NTSC/PAL and s-video PCIe capture and playback card for Windows, Mac OS X and Linux computers. Intensity Pro is great for HDTV or standard definition editing using big screen televisions and video projectors. Intensity Pro works with uncompressed SD or HD video, and compressed codecs such as ProRes, DVCPRO HD, DVCPRO 50, JPEG, HDV and DV! Intensity Pro is a professional editing card featuring maximum real time effects in Apple Final Cut Pro™ and Adobe Premiere Pro™, with full support for both uncompressed and compressed AVI and QuickTime files. Intensity Pro also has full integration with Adobe After Effects, Photoshop and Fusion.

Intensity Shuttle

aIntensity Shuttle, the world’s first 10 bit HD/SD editing solution for USB 3.0 Windows computers! Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback. Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle powers from the USB 3.0 connection so you don’t need cumbersome power supplies. Intensity Shuttle comes ready with advanced video technology such as HDMI 1.3 and 1080p electronics, so it will grow as faster high performance USB 3.0 computers are released in the future!

Multibridge Eclipse

a Multibridge is the world’s first external PCI Express capture and playback solution that instantly switches between SD, HD and 2K, in 4:2:2 or 4:4:4 video quality. Connect to your PC or Mac with high speed 10 Gb/s PCI Express for the world's highest quality editing system, or use independently as a bi-directional SDI video converter. With two models to choose from, there is a Multibridge model for every workflow.

UltraStudio Pro

a
UltraStudio Pro is the world’s first broadcast quality SD/HD capture and playback solution for USB 3.0 computers! UltraStudio Pro combines the latest broadcast technology into an attractive ultra-thin design that looks great on your desktop! With the incredible speed of USB 3.0 running at a massive 4.8 Gb/s, UltraStudio Pro easily has enough speed for the highest quality uncompressed 10 bit HD video with the maximum possible real time effects!
